Electric Sockets In Yurts

Reply

Thread Tools Search this Thread Display Modes
Old 05-18-2022, 02:10 AM   #1
Yurt Forum Youngin

Join Date: May 2022
Posts: 5
Default Electric sockets in yurts

Hello,
I am planning on running electric wires inside my platform, between floor joists.

I was wondering what people do with electric sockets ? Do you pin them to the lattice ? Do you use floor sockets ? Do run wires through canvas ?
Interested to hear form others' experience.

Here's one example i've seen :

dramatic is offline   Reply With Quote
Old 05-18-2022, 02:36 AM   #2
Yurt Forum Addict

Join Date: Jul 2018
Location: Austria
Posts: 166
Thumbs up Re: Electric sockets in yurts

Quote:
Originally Posted by dramatic View Post
Here's one example i've seen
Looks fine & fits optical as necessary interior part.....
TSRalex is offline   Reply With Quote
Blue Ridge Yurts
Old 05-18-2022, 09:06 AM   #3
Yurt Forum Addict

Join Date: Nov 2013
Posts: 2,019
Default Re: Electric sockets in yurts

Go for it.
dramatic likes this.
Bob Rowlands is offline   Reply With Quote
Old 05-22-2022, 01:04 AM   #4
Industry Specialist
Yurts of Hawaii

HawaiiYurts's Avatar

Join Date: Jul 2012
Location: Volcano, Big Island, Hawaii
Posts: 251
Default Re: Electric sockets in yurts

The vertical studs that come with most wind kits are awesome for this purpose. They allow you to add outlets or switches at any height vertically and also give you an easy pathway for wire to run overhead lights/smoke detectors/etc. We typically use a cedar moulding to hide the wire nicely.
Bob Rowlands likes this.
HawaiiYurts is offline   Reply With Quote
Old 05-22-2022, 08:10 AM   #5
Yurt Forum Member

trihartsfield's Avatar

Join Date: Jun 2017
Location: Sheridan, MT
Posts: 44
Default Re: Electric sockets in yurts

I ran the wire along the floor and attached the outlet boxes to the floor. I covered the wire with a flexible mesh. The wire is out of the way where it can not be stepped on.
trihartsfield is offline   Reply With Quote
Old 05-22-2022, 08:39 AM   #6
Yurt Forum Addict

Join Date: Nov 2013
Posts: 2,019
Default Re: Electric sockets in yurts

Exposed Romex is against code around here and likely everywhere else. BX cable is typically used where wiring is visible.

Exposed romex at foot level, now that I can understand. However the e code is so stringent now it's illegal to have a hanging swag lamp, like over a dining table, with wiring woven in the chain. I mean like, you know, what if it's your bachelor party, and a pole dancer hopped on top of the table grabbed the swag chain and blew her pasties off while getting her groove on. Guys would catch her if she fell. It isn't like she'd really get hurt or anything. haha

Last edited by Bob Rowlands; 05-22-2022 at 08:41 AM.
Bob Rowlands is offline   Reply With Quote
Old 07-25-2022, 09:40 PM   #7
Yurt Forum Member

Join Date: Mar 2022
Location: Ulaanbaatar, Mongolia
Posts: 93
Send a message via Skype™ to UKadventurer
Default Re: Electric sockets in yurts

I just finished the electrical work on one of our modern gers (aka 'yurts'). The framing is a bit different from typical lattice walls. There are 6 vertical, curved support posts-to-beams connecting 3 rings. A base ring, a ceiling ring, and a crown ring. The posts/beams are 10cm and 10cm (4"x4") dimension. The floor ring is 15cm x 10cm (6"x4"). I tucked romex behind all the woodwork so it's mostly invisible. An outdoor grade cable brings the mains power from on of our shipping containers where the circuit breaker panel is located. I buried that cable most of its route and the rest of it is in a plastic conduit.

There are no electrical codes for gers in Mongolia, so anything goes. That being said, I lived in California for 22 years and have done rewiring so I'm not totally new to electrical work on my own homes.

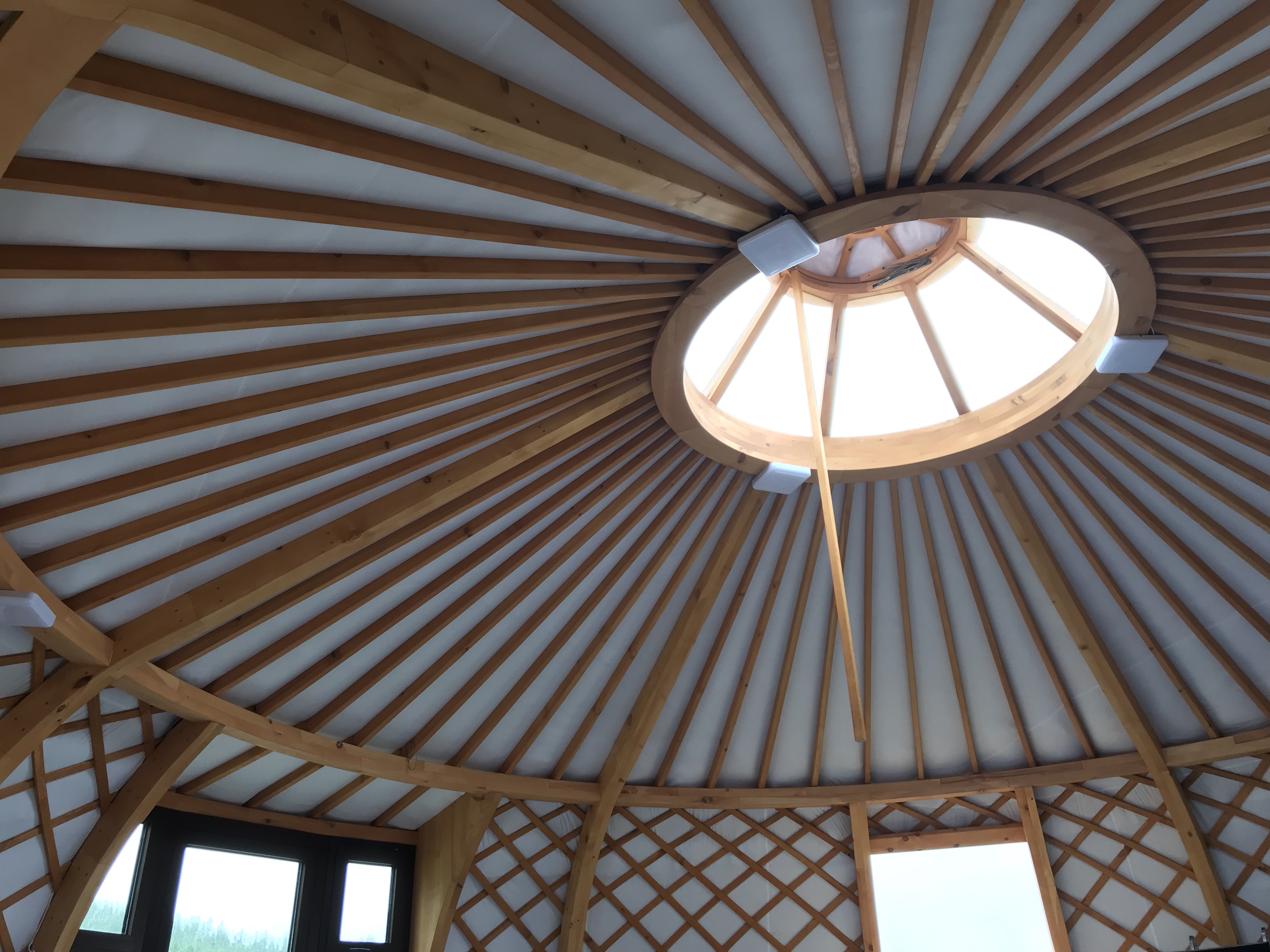

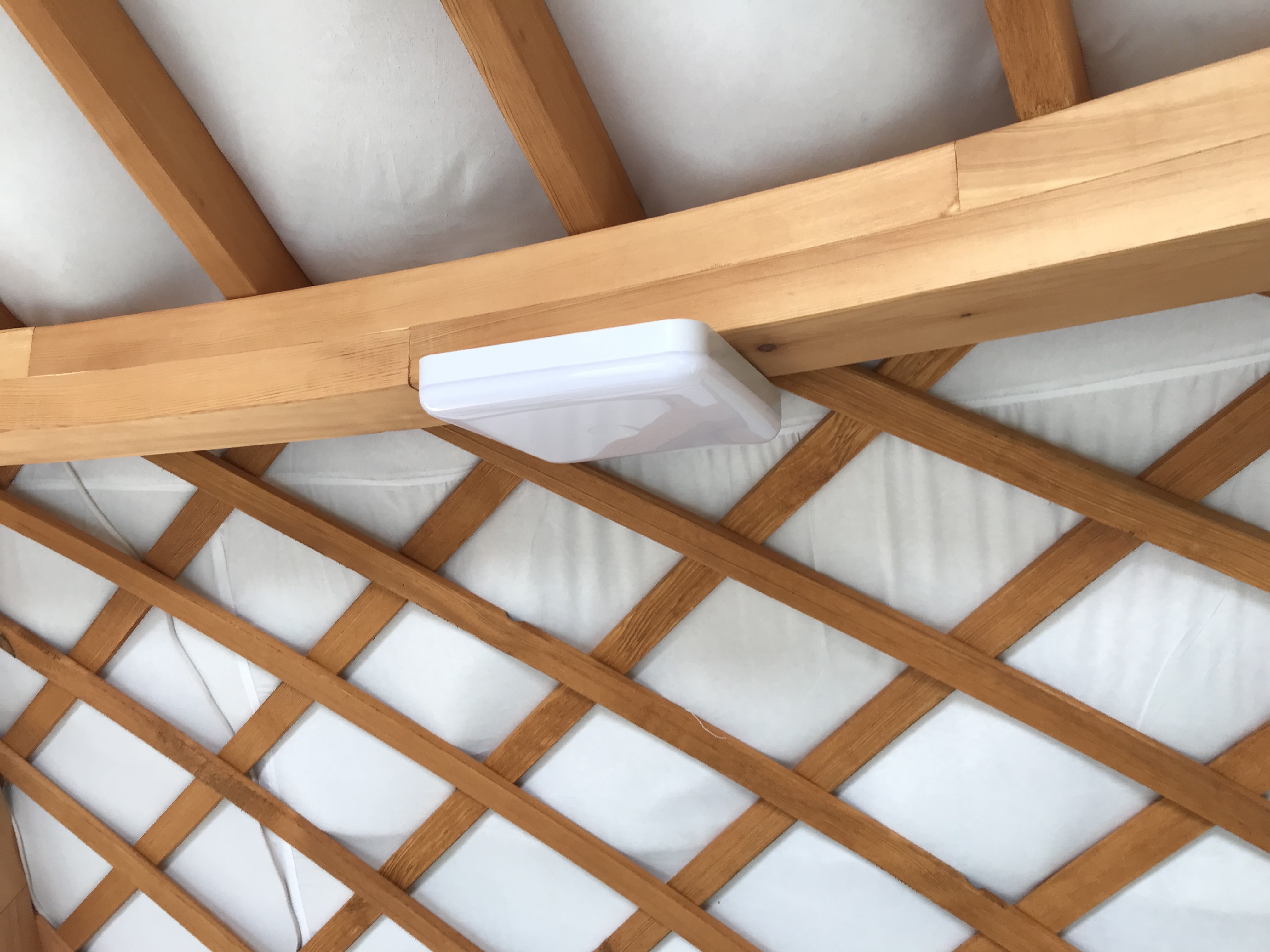

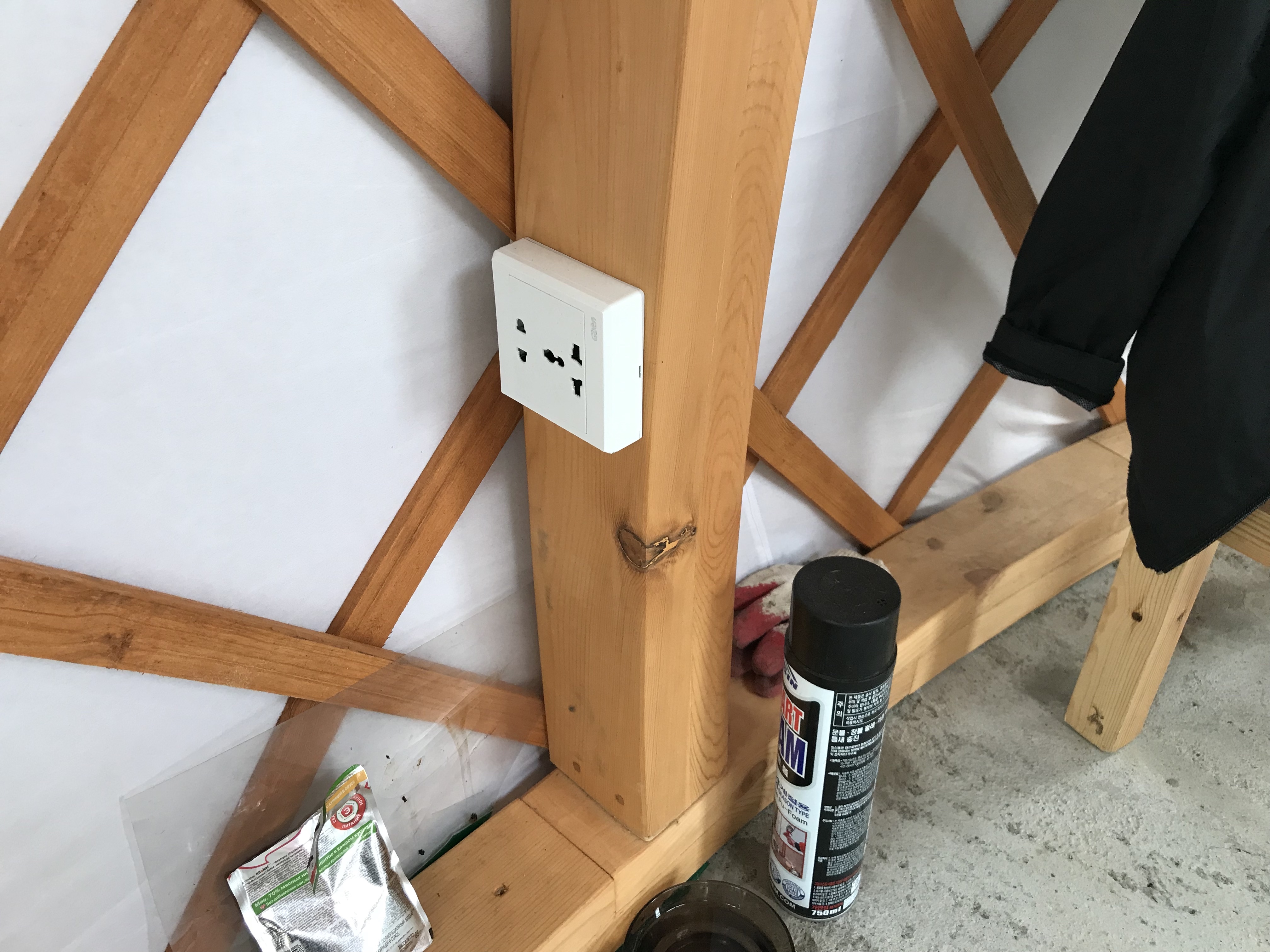

I put a socket about every 4 metres. Plus a couple of extras in the probable kitchen area. Lights are 4 x 20w LED square fixtures. 3 attached to the crown ring and 1 on the middle ring (for the probable kitchen).
Attached Thumbnails
Click image for larger version

Name:	ceiling lights.jpg
Views:	72
Size:	2.05 MB
ID:	1293   Click image for larger version

Name:	electrical kitchen light.jpg
Views:	44
Size:	1.79 MB
ID:	1294   Click image for larger version

Name:	electrical light switch and socket.jpg
Views:	55
Size:	2.28 MB
ID:	1295   Click image for larger version

Name:	electrical socket 01.jpg
Views:	60
Size:	2.21 MB
ID:	1296   Click image for larger version

Name:	electrical socket 02.jpg
Views:	45
Size:	1.92 MB
ID:	1297

TSRalex likes this.
UKadventurer is offline   Reply With Quote
Old 07-25-2022, 10:42 PM   #8
Yurt Forum Addict

Join Date: Nov 2013
Posts: 2,019
Default Re: Electric sockets in yurts

That is one stylish yurt. Looks like it should be in architectural digest. Nicely done!
Bob Rowlands is offline   Reply With Quote
Old 07-30-2022, 11:28 PM   #9
Yurt Forum Member

Join Date: Dec 2021
Posts: 30
Default Re: Electric sockets in yurts

Code is going to force you to get those receptacles off the floor, probably, unless it's a recep designed for the floor (have you considered that?). You could put in some raceways like this one: https://www.homedepot.com/p/Legrand-...E&gclsrc=aw.ds

Which would just connect to your lattice if you don't have wind studs. Do you have any interior walls? That's a great place to stash circuits. If you don't need much AC, you could give yourself a pedastal through the floor where you want it, and do low voltage DC elsewhere for LED lighting and cell phone charging. The inspector won't care about the low voltage stuff so you can do whatever you like!
Bob Rowlands likes this.
skihuckster is offline   Reply With Quote
Old 07-31-2022, 08:34 AM   #10
Yurt Forum Addict

Join Date: Nov 2013
Posts: 2,019
Default Re: Electric sockets in yurts

Good advice. Thanks.
